Crowdsourcing and citizen science

How to handle our data?

Tanguy Lefort
tanguy.lefort@inria.fr

University of Montpellier, INRIA

2024-07-05

Quick word about myself

  • Master in Biostatistics (Univ. Montpellier)
  • Thesis on label ambiguity in crowdsourcing setting
  • Today’s goal: explore the world of crowdsourced datasets

Supervisors and more

Benjamin Charlier

Alexis Joly

Joseph Salmon

Pierre Bonnet

Jean-Christophe Lombardo

Antoine Affouard

Crowdsourcing: where is my data coming from?

Training a classifier

Training a classifier

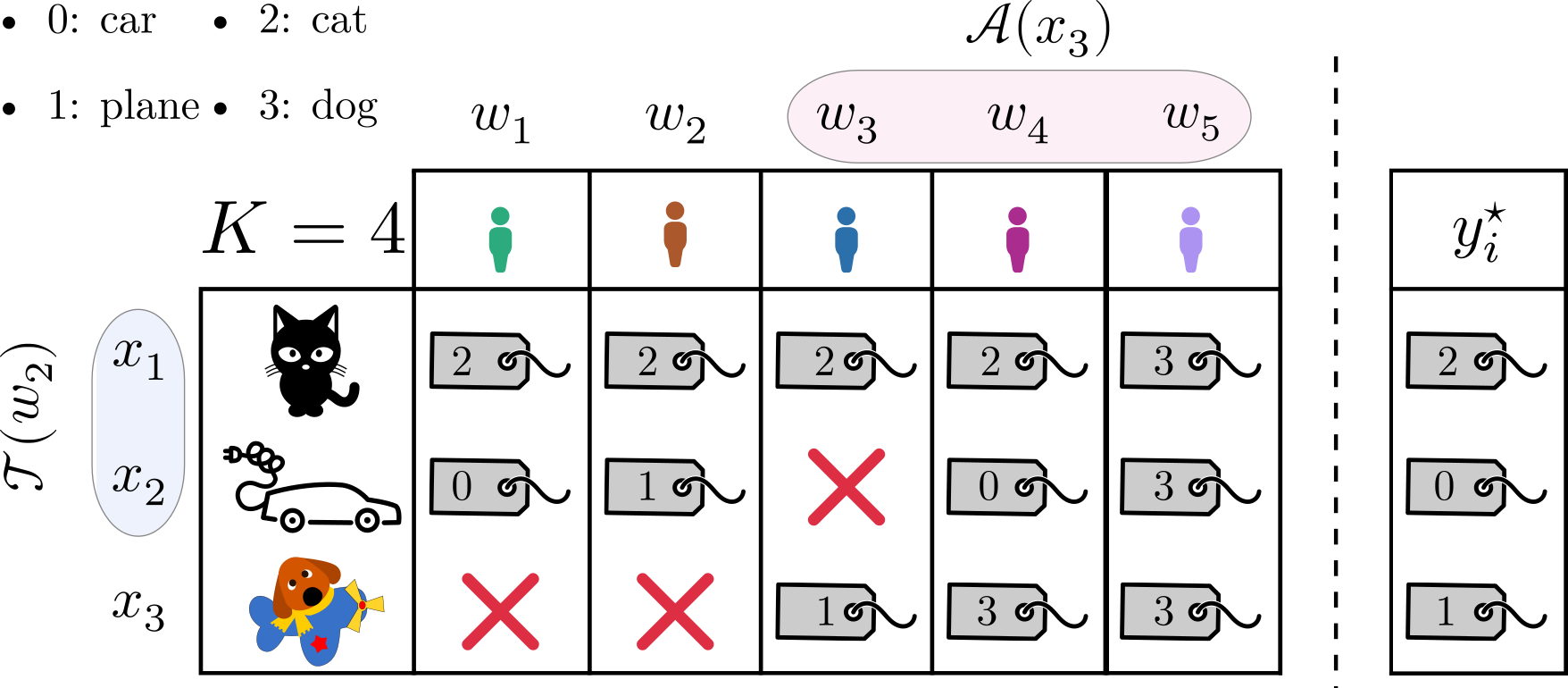

Crowd labels

\(\Longrightarrow\) We write \(y_i^{(j)}\) the answer from worker \(w_j\) to task \(x_i\) \(\Longleftarrow\)

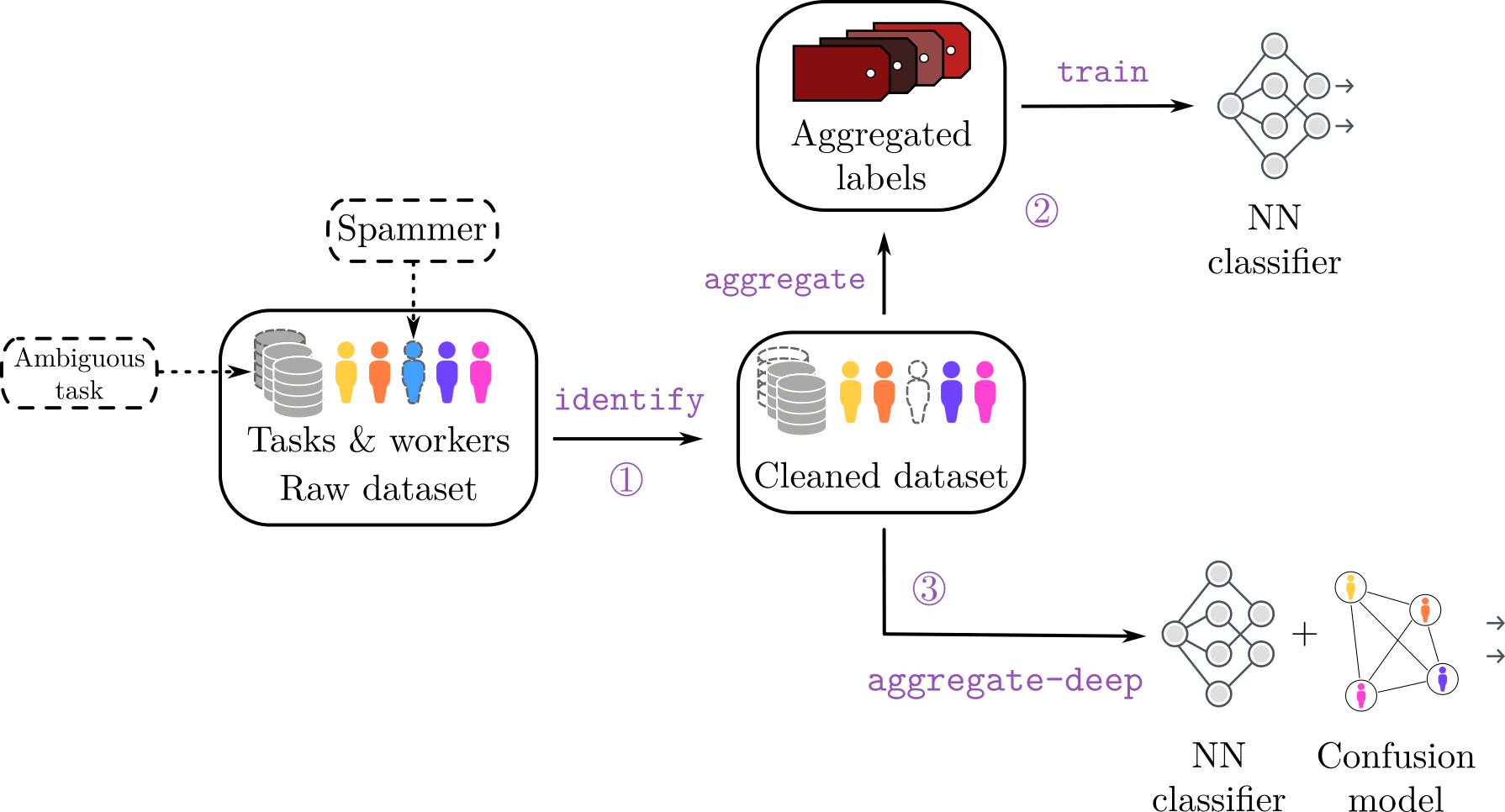

Pipeline available in the peerannot library

Identify ambiguous tasks

Entropy

\[\begin{align*} H(p)&=-\sum_{k}p_k\log(p_k) \quad\text{with}\quad p = \frac{1}{|\mathcal{A}(x_i)|}\left(\sum_{j\in \mathcal{A}(x_i)} \mathbf{1}(y_i^{(j)}=k)\right)_{k\in[K]} \end{align*}\]

Pros

  • Easy to compute
  • Lots of theory

Cons

  • Only representative for a large number of labels
  • Null entropy = Single label or Consensus

Weighted Areas Under the Margin (Lefort et al. 2024)

  • Adapted from the \(\color{blue}{\text{Area Under the Margin (Pleiss et al. 2021)}}\) in the supervised setting
  • Detect images “hard to learn” for a given NN classifier during \(T\) training epochs

\[ \mathrm{WAUM}(x_i) = \frac{1}{\displaystyle\sum_{j'\in\mathcal{A}(x_i)} s^{(j')}(x_i)} \sum_{j\in\mathcal{A}(x_i)} s^{(j)}(x_i) \color{blue}{\left\{\frac{1}{T} \sum_{t=1}^T \sigma(\mathcal{C}(x_i))_{y_i^{(j)}} - \sigma(\mathcal{C}(x_i))_{[2]}\right\}} \]

  • Each worker has a weight \(s^{(j)}(x_i)>0\) (Servajean et al. 2017)
  • The higher the WAUM the easier the task was to classify

Weighted Areas Under the Margin

Pros

  • Works with few labels
  • Considers the tasks’ difficulty using the tasks

Cons

  • Sensitive to architecture
  • Can be computationally expensive

Examples of identified images using the WAUM

CIFAR-10H: K=10

plane, car, bird, cat, deer, dog, frog, horse, ship, truck

LabelMe: K=8

highway, insidecity, tallbuilding, street, forest, coast, mountain, open country.

Aggregate labels

(Weighted) Majority Votes

\[ \hat y_i = \underset{k\in[K]}{\mathrm{argmax}}\left(\sum_{j\in\mathcal{A}(x_i)} s^{(j)}\mathbf{1}(y_i^{(j)}=k)\right)_k \]

  • Majority Vote
  • \(s^{(j)}=1\) for all workers
  • Sensitive to poorly performing workers
  • Lots of theory for performance under different settings
  • Worker Agreement with Aggregate (Appen, 2021)
  • \(s^{(j)}=\mathrm{Accuracy}(\{y_i^{(j)}\}_i, \hat y_i^{\mathrm{MV}})\rightarrow\) WAWA
  • Easy to compute and less sensitive than MV
  • Weighted majority vote using Shapley values in crowdsourcing Lefort et al. 2024 (CAp)
  • Use Shapley values as weights for the interpretability:

\[ s^{(j)} = \sum_i \left|\sum_{S\subset [n_\texttt{worker}]} \frac{|S|! (n_\texttt{worker}-|S|-1)!}{n_\texttt{worker}!}[\nu_{x_i, f}(S\cup \{j\}) - \nu_{x_i, f}(S)]\right| \]

  • Iterative Weighted Majority Vote (Li, 2014)
  • Iteratively apply WAWA until convergence
  • Zero Based Skill (crowdkit)
  • Gradient descent version of WAWA

At each step \(t\): \[ s^{(j)}_t \gets s^{(j)}_{t-1} - \eta \left(s^{(j)}_{t-1} - \mathrm{Accuracy}(\{y_i^{(j)}\}_i), \hat y_i^{t-1}\right) \]

Dawid and Skene

  • Workers are defined by their pairwise confusions.
  • This answer follows a multinomial distribution.

\[ y^{(j)}|y^\star\sim\mathcal{M}\text{ultinomial}(\pi^{(j)}_{y^\star,\cdot}) \]

where \(\pi^{(j)}_{k,\ell}=\mathbb{P}(\text{worker } j \text{ answers } \ell \text{ with truth } k)\)

Pros

  • Worker uncertainty is modeled
  • Can use adversarial workers

Cons

  • Memory issue: \(n_\texttt{worker} \times K^2\) parameters for confusion matrices only

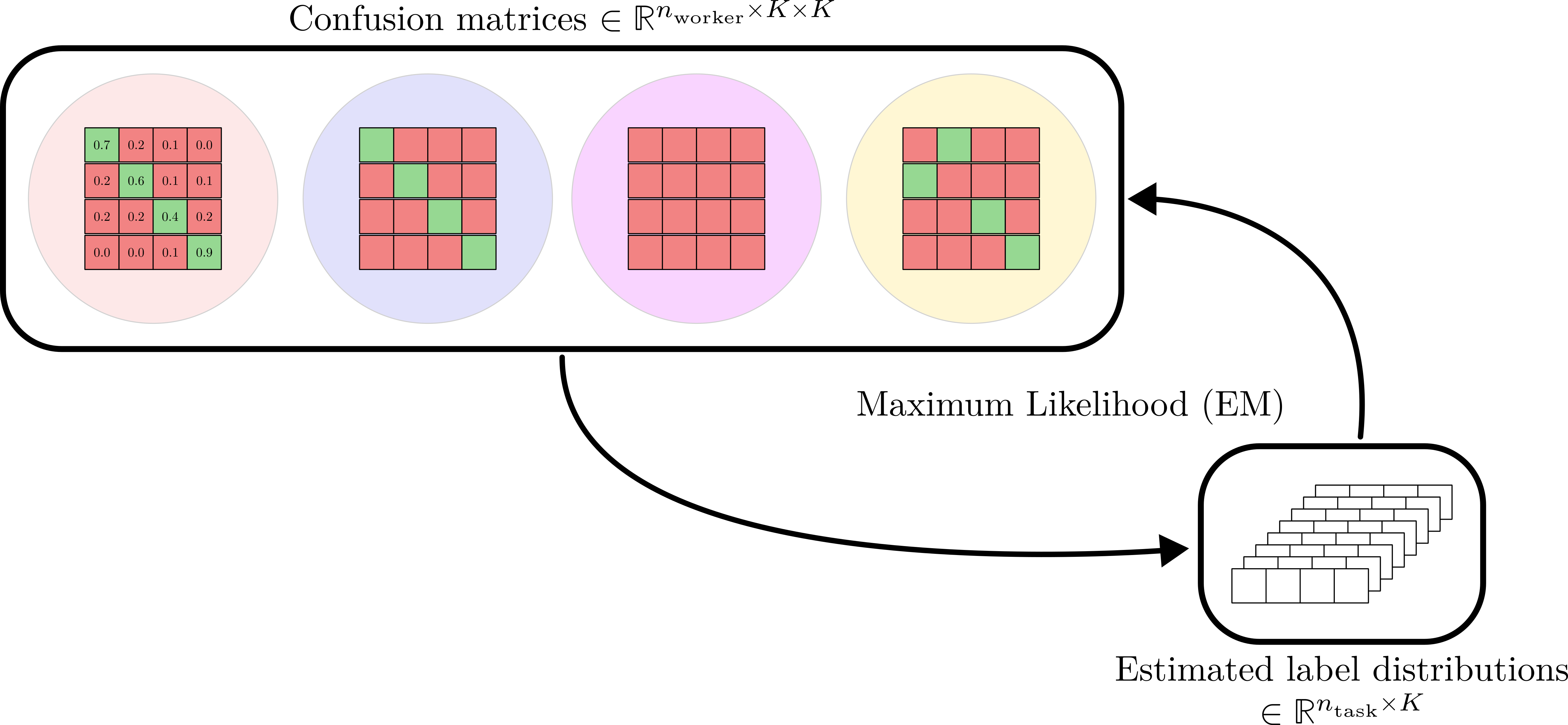

Dawid and Skene (obtain the labels)

  • Probabilistic model \(\rightarrow\) likelihood maximization \[ \prod_{i\in [n_{\text{task}}]}\prod_{k \in [K]}\left[\rho_k\prod_{k\in [n_{\text{worker}}]} \prod_{\ell\in [K]}(\pi^{(j)}_{k, \ell})^{\mathbf{1}_{\{y_i^{(j)}=\ell\}}} \right]^{T_{i,k}} \]

  • Prevalence: \(\rho_k=\mathbb{P}(y_i^\star=k)\)
  • Labels: \(T_{i,k}=\mathbf{1}(y_i^\star=k)\)

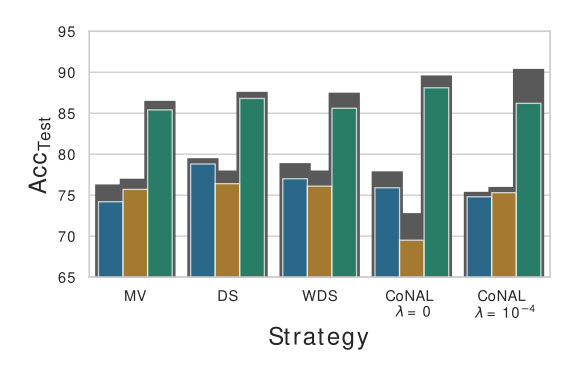

Results on LabelMe dataset (Rodrigues et al., 2018)

  • \(K=8\) for \(1000\) images and \(59\) workers
  • Each image: \(|\mathcal{A}(x_i)|\leq 3\) \(\Rightarrow\) Entropy not useful
  • Prune images with \(\mathrm{WAUM}<q_{0.01}\) (quantile of WAUM)

Application to Pl@ntNet

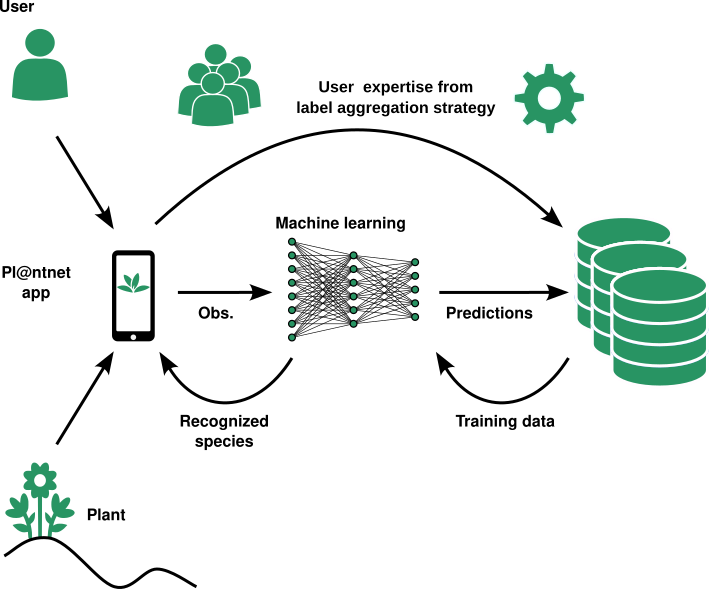

Pl@ntNet system (in short)

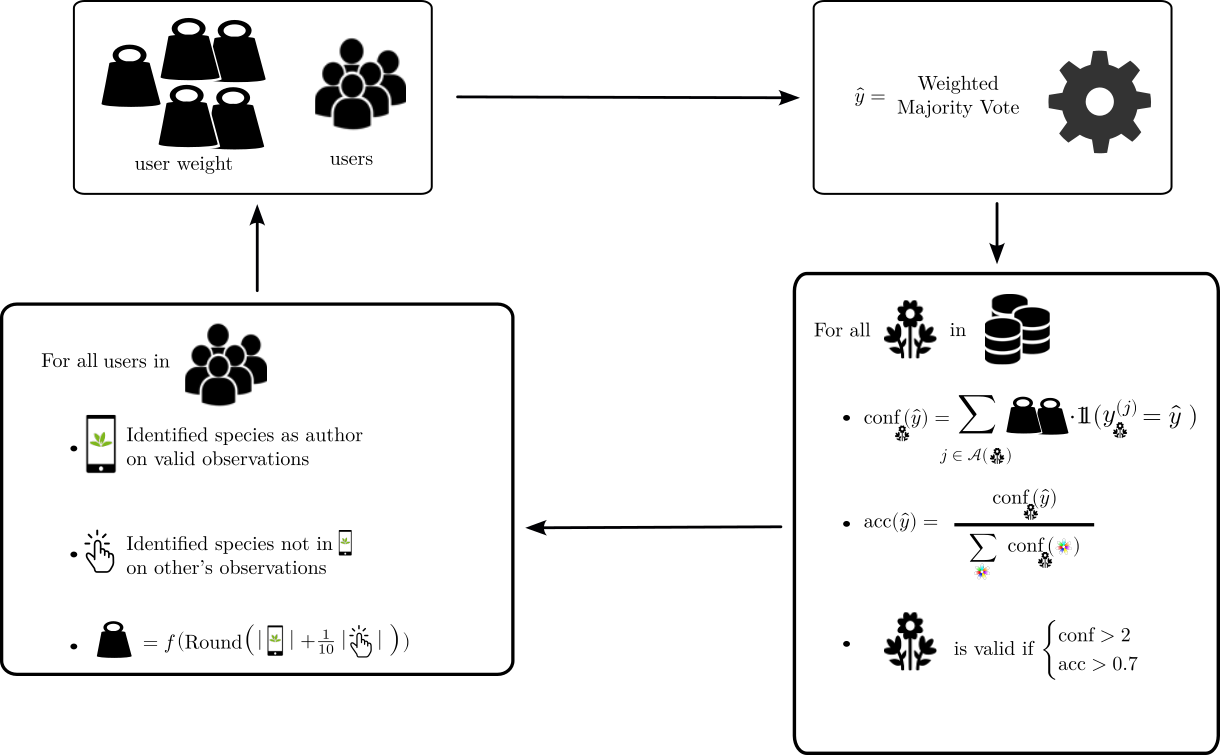

Pl@ntet aggregation

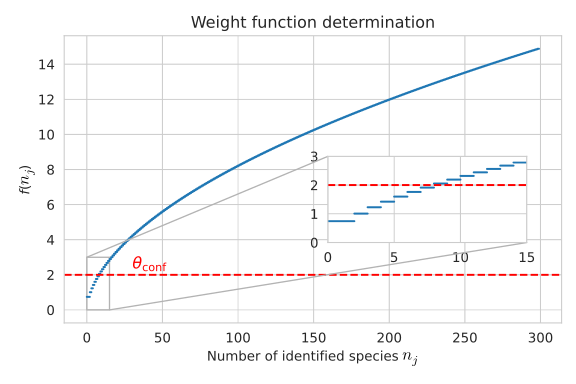

Pl@ntNet weights

\[ f(n_j)=n_j^\alpha - n_j^\beta + \gamma, \text{ with }\begin{cases} \alpha=0.5 \\ \beta=0.2 \\ \gamma=\log(2.1)\simeq 0.74 \end{cases} \]

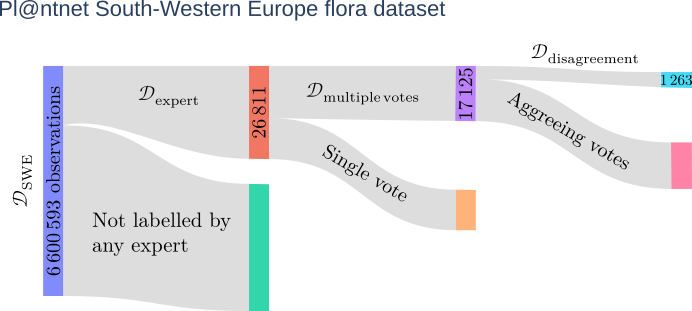

Dataset specifications

  • South Western European Flora since 2017
  • 823 000 users and \(K>11 000\)
  • \(>6.5\)M tasks
  • \(>9\)M votes casted

High imbalance: \(80\%\) of images are represented by \(10\%\) of votes

How to evaluate the performance

  • No ground truth \(\rightarrow\) make one!
  • Extraction of \(98\) botanical experts (TelaBotanica + commmunity)

Scaling aggregation strategies

  • Majority Vote
  • WAWA: Majority Vote with worker weight=accuracy against MV
  • TwoThird: One of the tools of iNaturalist. Accept label if:
    • more than two votes
    • 2/3 consensus

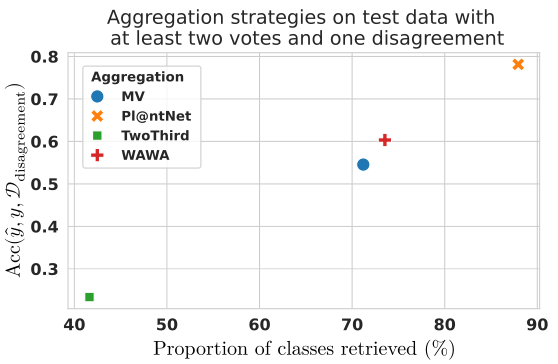

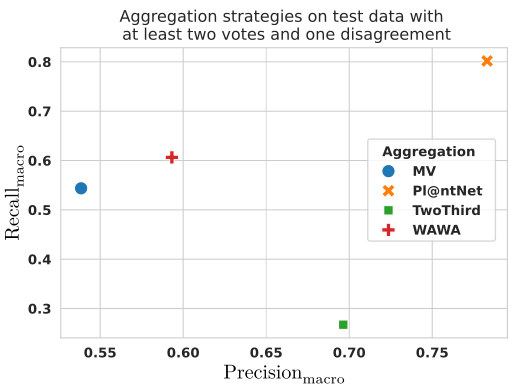

Results

Take home message

  • Crowdsourcing allows to collect data easily
  • … but using this data efficiently requires expertise
  • Improve input quality \(\Rightarrow\) Improve output predictions
  • Peerannot library for classification crowdsourced datasets
